Our company can accept various customized non-standard tools
Suitable for processing materials

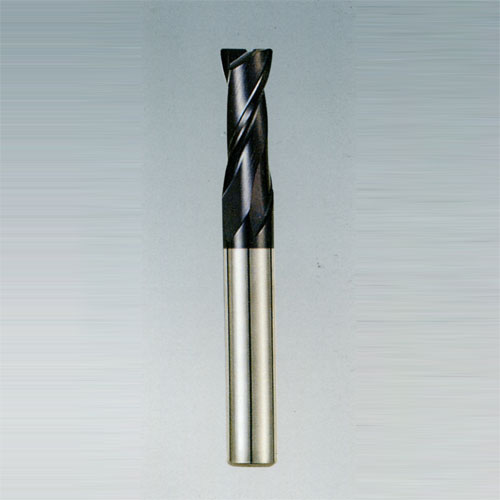

The two-edged flat-head milling cutter is mainly groove milling, and is suitable for the processing of carbon steel, mold steel, alloy steel, tool steel, stainless steel, heat-treated steel, titanium alloy, etc. with HRC ≤65.
Linear diagram
Order number | Specification | |||||
No coating | Titan | D1 | L2 | D2 | L1 | ž |
HY002X-0100 | HY002X-0100C | 1 | 3 | 4 | 50 | 2 |
HY002X-0150 | HY002X-0150C | 1.5 | 4 | 4 | 50 | 2 |
HY002X-0200 | HY002X-0200C | 2 | 6 | 4 | 50 | 2 |
HY002X-0250 | HY002X-0250C | 2.5 | 7 | 4 | 50 | 2 |
HY002X-0350 | HY002X-0350C | 3.5 | 11 | 4 | 50 | 2 |
HY002X-0300 | HY002X-0300C | 3 | 8 | 4 | 50 | 2 |
HY002X-0400 | HY002X-0400C | 4 | 12 | 4 | 50 | 2 |
HY002X-0500 | HY002X-0500C | 5 | 15 | 6 | 50 | 2 |
HY002X-0600 | HY002X-0600C | 6 | 16 | 6 | 50 | 2 |
HY002X-0700 | HY002X-0700C | 7 | 18 | 8 | 60 | 2 |
HY002X-0800 | HY002X-0800C | 8 | 20 | 8 | 60 | 2 |
HY002X-0900 | HY002X-0900C | 9 | 22 | 10 | 75 | 2 |
HY002X-1000 | HY002X-1000C | 10 | 25 | 10 | 75 | 2 |
HY002X-1200 | HY002X-1200C | 12 | 25 | 12 | 75 | 2 |
HY002X-1400 | HY002X-1400C | 14 | 45 | 14 | 100 | 2 |
HY002X-1600 | HY002X-1600C | 16 | 45 | 16 | 100 | 2 |
HY002X-1800 | HY002X-1800C | 18 | 45 | 18 | 100 | 2 |
HY002X-2000 | HY002X-2000C | 20 | 45 | 20 | 100 | 2 |
