Our company can accept various customized non-standard tools
Suitable for processing materials

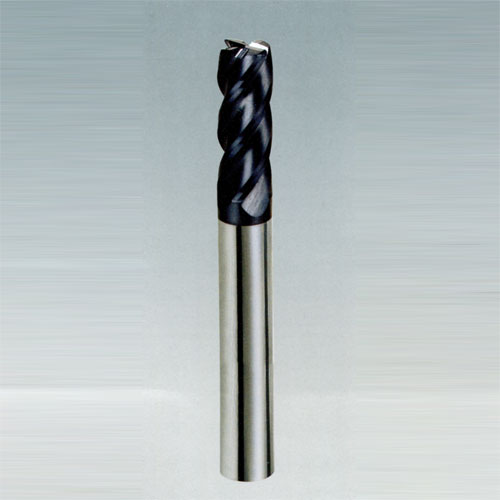

The R-angle structure design of four-edged round nose milling cutter can protect the cutting tip from cracking, and can also replace small-diameter ball-head milling cutter for high cutting such as angle cleaning or curved surfaces. It is suitable for processing of carbon steel, mold steel, alloy steel, tool steel, stainless steel, heat-treated steel, titanium alloy and other HRC≦65.
Linear diagram
Order number | Specification | ||||||
No coating | Titan | D1 | L2 | L1 | D2 | [R | ž |
HY006X-0300 | HY006X-0300C | 3 | 6 | 50 | 4 | 0.5 | 2 |
HY006X-0400 | HY006X-0400C | 4 | 8 | 50 | 4 | 0.5 | 2 |
HY006X-0500 | HY006X-0500C | 5 | 15 | 50 | 6 | 0.5 | 4 |
HY006X-0600 | HY006X-0600C | 6 | 15 | 50 | 6 | 1 | 4 |
HY006X-0800I | HY006X-0800C | 8 | 20 | 60 | 8 | 1 | 4 |
HY006X-0800 | HY006X-0800C | 8 | 20 | 60 | 8 | 2 | 4 |
HY006X-1000 | HY006X-1000C | 10 | 25 | 75 | 10 | 1.5 | 4 |
HY006X-1000 | HY006X-1000C | 10 | 25 | 75 | 10 | 2 | 4 |
HY006X-1200 | HY006X-1200C | 12 | 25 | 75 | 12 | 1 | 4 |
HY006X-1200 | HY006X-1200C | 12 | 25 | 75 | 12 | 2 | 4 |
HY006X-1600 | HY006X-1600C | 16 | 40 | 100 | 16 | 2 | 4 |
HY006X-2000 | HY006X-2000C | 20 | 40 | 100 | 20 | 1 | 4 |
HY006X-2000 | HY006X-2000C | 20 | 40 | 100 | 20 | 2 | 4 |
