产品详情
我公司可以接受各种定制的非标刀具
适用加工材料

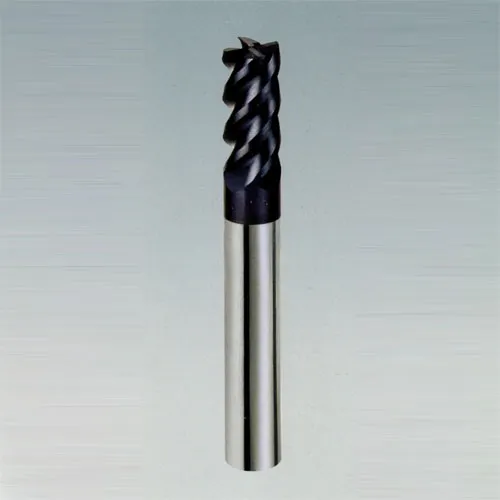

四刃立铣刀以沟槽铣削为主，适用于HRC≤65的碳素钢，模具钢，合金钢，工具钢，不锈钢，热处理钢，钛合金等的加工。

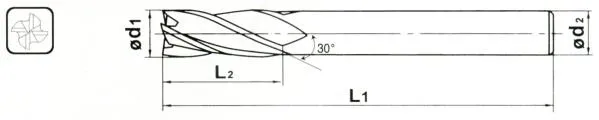

线型图
订货号 | 规格 | |||||
不涂层 | 泰坦 | D1 | L2 | D2 | L1 | ž |
HY004X-0100 | HY004X-0100C | 1 | 3 | 4 | 50 | 4 |
HY004X-0200 | HY004X-0200C | 2 | 6 | 4 | 50 | 4 |
HY004X-0250 | HY004X-0250C | 2.5 | 7 | 4 | 50 | 4 |
HY004X-0300 | HY004X-0300C | 3 | 8 | 4 | 50 | 4 |
HY004X-0400 | HY004X-0400C | 4 | 12 | 4 | 50 | 4 |
HY004X-0500 | HY004X-0500C | 5 | 15 | 6 | 50 | 4 |
HY004X-0600 | HY004X-0600C | 6 | 16 | 6 | 50 | 4 |
HY004X-0800 | HY004X-0800C | 8 | 20 | 8 | 60 | 4 |
HY004X-1000 | HV004X-1000C | 10 | 25 | 10 | 75 | 4 |
HY004X-1200 | HY004X-1200C | 12 | 25 | 12 | 75 | 4 |
HY004X-1400 | HY004X-1400C | 14 | 45 | 14 | 100 | 4 |
HY004X-1600 | HY004X-1600C | 16 | 45 | 16 | 100 | 4 |
HV004X-1800 | HY004X-1800C | 18 | 45 | 18 | 100 | 4 |
HY004X-2000 | HY004X-2000C | 20 | 45 | 20 | 100 | 4 |
