产品详情
我公司可以接受各种定制的非标刀具
适用加工材料
碳素铁铸铁模具钢合金钢工具钢热处理钢焊补钢料

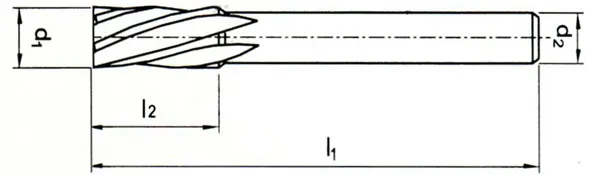

线型图
订货号Art.No。 | 规格 | |||||
不涂层 | TiAlN复合 | d1 | d2 | 升1 | 升2 | ž |
HY009J-0400 | HY009J-0400C | 4.0 | 4.0 | 56 | 20 | 4 |
HY009J-0450 | HY009J-0450C | 4.5 | 4.5 | 63 | 22 | 6 |
HY009J-0500 | HY009J-0500C | 5.0 | 5.0 | 63 | 22 | 6 |
HY009J-0550 | HY009J-0550C | 5.5 | 5.5 | 63 | 22 | 6 |
HY009J-0600 | HY009J-0600C | 6.0 | 6.0 | 63 | 22 | 6 |
HY009J-0650 | HY009J-0650C | 6.5 | 6.5 | 63 | 22 | 6 |
HY009J-0700 | HY009J-0700C | 7.0 | 7.0 | 71 | 25 | 6 |
HY009J-0750 | HY009J-0750C | 7.5 | 7.5 | 71 | 25 | 6 |
HY009J-0800 | HY009J-0800C | 8.0 | 8.0 | 71 | 25 | 6 |
HY009J-0850 | HY009J-0850C | 8.5 | 8.5 | 71 | 25 | 6 |
HY009J-0900 | HY009J-0900C | 9.0 | 9.0 | 71 | 25 | 6 |
HY009J-0950 | HY009J-0950C | 9.5 | 9.5 | 71 | 25 | 6 |
HY009J-1000 | HY009J-1000C | 10.0 | 10.0 | 71 | 25 | 6 |
HY009J-1050 | HY009J-1050C | 10.5 | 10.5 | 80 | 28 | 6 |
HY009J-1100 | HY009J-1100C | 11.0 | 11.0 | 80 | 28 | 6 |
HY009J-1150 | HY009J-1150C | 11.5 | 11.5 | 80 | 28 | 6 |
HY009J-1200 | HY009J-1200C | 12.0 | 12.0 | 80 | 28 | 6 |
订货时请注明导向角度（30°40°）
