产品详情
我公司可以接受各种定制的非标刀具
适用加工材料
碳素铁，铸铁，模具钢，合金钢，工具钢，热处理钢，不锈钢，钛合金等的加工。

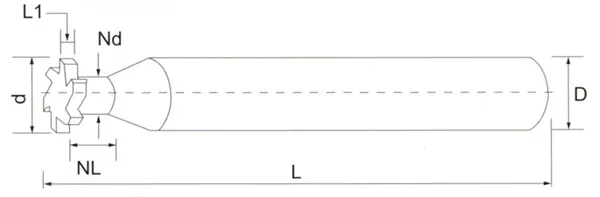

线型图
订货号 | 规格 | ||||||||
不涂层 | TIAIN | d | L1 | 钕 | NL | 大号 | d | ž | |
HY21X-4006 | HY21X-4006 | 4.0 | 0.6 | 2.5 | 3.5 | 50 | 4 | 4 | |
HY21X-4008 | HY21X-4008 | 4.0 | 0.8 | 2.5 | 3.5 | 50 | 4 | 4 | |
HY21X-4010 | HY21X-4010 | 4.0 | 1.0 | 2.5 | 3.5 | 50 | 4 | 4 | |
HY21X-4020 | HY21X-4020 | 4.0 | 2.0 | 2.5 | 3.5 | 50 | 4 | 4 | |
HY21X-5006 | HY21X-5006 | 5.0 | 0.6 | 2.5 | 4.0 | 50 | 6 | 4 | |
HY21X-5008 | HY21X-5008 | 5.0 | 0.8 | 2.5 | 4.0 | 50 | 6 | 4 | |
HY21X-5010 | HY21X-5010 | 5.0 | 1.0 | 2.5 | 4.0 | 50 | 6 | 4 | |
HY21X-5020 | HY21X-5020 | 5.0 | 2.0 | 2.5 | 4.0 | 50 | 6 | 4 | |
HY21X-6007 | HY21X-6007 | 6.0 | 0.7 | 3.0 | 4.0 | 50 | 6 | 6 | |
HY21X-6009 | HY21X-6009 | 6.0 | 0.9 | 3.0 | 4.0 | 50 | 6 | 6 | |
HY21X-6015 | HY21X-6015 | 6.0 | 1.5 | 3.0 | 4.0 | 50 | 6 | 6 | |
HY21X-8010 | HY21X-8010 | 8.0 | 1.0 | 4.0 | 4.0 | 60 | 8 | 6 | |
HY21X-8020 | HY21X-8020 | 8.0 | 2.0 | 4.0 | 4.0 | 60 | 8 | 6 | |
HY21X-10015 | HY21X-10015 | 10.0 | 1.5 | 5.0 | 6.0 | 75 | 10 | 6 | |
HY21X-12010 | HY21X-12010 | 12.0 | 1.0 | 6.0 | 7.0 | 75 | 12 | 6 | |
HY21X-12020 | HY21X-12020 | 12.0 | 2.0 | 6.0 | 7.0 | 75 | 12 | 6 | |
