我公司可以接受各种定制的非标刀具
适用加工材料
专为加工高强度材料（不锈钢，镍基合金和钛合金）而设计，也适合铸铁用，但不适合加工有色金属。

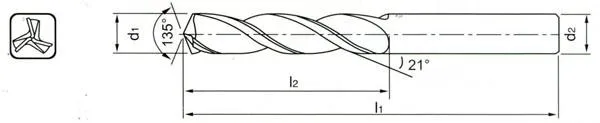

线型图
订货号 | 规格 | ||||
不涂层 | TIAIN | d1 | 升2 | 升1 | d2 |
HY003Z-0200 | HY003Z-0200C | 2.0 | 12 | 44 | 3 |
HY003Z-0250 | HY003Z-0250C | 2.5 | 14 | 45 | 3 |
HY003Z-0300 | HY003Z-0300C | 3.0 | 16 | 48 | 3 |
HY003Z-0350 | HY003Z-0350C | 3.5 | 20 | 52 | 4 |
HY003Z-0400 | HY003Z-0400C | 4.0 | 22 | 54 | 4 |
HY003Z-0450 | HY003Z-0450C | 4.5 | 24 | 68 | 6 |
HY003Z-0500 | HY003Z-0500C | 5.0 | 26 | 70 | 6 |
HY003Z-0550 | HY003Z-0550C | 5.5 | 28 | 72 | 6 |
HY003Z-0600 | HY003Z-0600C | 6.0 | 28 | 72 | 6 |
HY003Z-0650 | HY003Z-0650C | 6.5 | 31 | 75 | 8 |
HY003Z-0700 | HY003Z-0700C | 7.0 | 34 | 78 | 8 |
HY003Z-0750 | HY003Z-0750C | 7.5 | 34 | 78 | 8 |
HY003Z-0800 | HY003Z-0800C | 8.0 | 37 | 81 | 8 |
HY003Z-0850 | HY003Z-0850C | 8.5 | 37 | 87 | 10 |
HY003Z-0900 | HY003Z-0900C | 9.0 | 70 | 90 | 10 |
HY003Z-0950 | HY003Z-0950C | 9.5 | 40 | 90 | 10 |
HY003Z-1000 | HY003Z-1000C | 10.0 | 43 | 93 | 10 |
HY003Z-1050 | HY003Z-1050C | 10.5 | 43 | 100 | 12 |
HY003Z-1100 | HY003Z-1100C | 11.0 | 47 | 104 | 12 |
HY003Z-1150 | HY003Z-1150C | 11.5 | 47 | 104 | 12 |
HY003Z-1200 | HY003Z-1200C | 12.0 | 51 | 108 | 12 |
