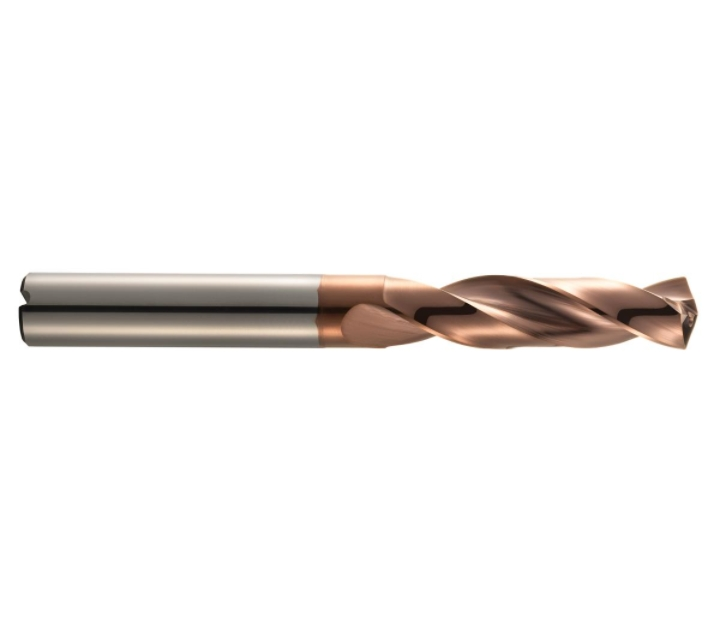

3D Internal Cooling Twist drills

Category: Solid Carbide Drills
Suitable for: PSteel

Inquire about this product li.bao@hayutooling.com

Product description

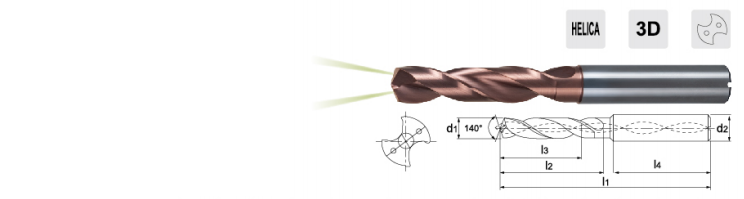

3D内

产品编号 ltem Code	刃径(d1m7) Diameter	螺纹尺寸 M 公制 Thread size M metric system	柄径(d h6) Shank Diameter	全长(L1) Total length	槽长(L2) Slct length	最大切深(L3) Max cutting deepth	柄长(L4) Stalk length
HY-3DN-D0300	3		6	62	20	14	36
HY-3DN-D0325	3.25		6	62	20	14	36
HY-3DN-D0330	3.3	M4	6	62	20	14	36
HY-3DN-D0340	3.4		6	62	20	14	36
HY-3DN-D0350	3.5		6	62	20	14	36
HY-3DN-D0370	3.7		6	62	20	14	36
HY-3DN-D0400	4		6	66	24	17	36
HY-3DN-D0420	4.2	M5	6	66	24	17	36
HY-3DN-D0430	4.3		6	66	24	17	36
HY-3DN-D0450	4.5		6	66	24	17	36
HY-3DN-D0465	4.65		6	66	24	17	36
HY-3DN-D0480	4.8		6	66	28	20	36
HY-3DN-D0500	5	M6	6	66	28	20	36
HY-3DN-D0510	5.1		6	66	28	20	36
HY-3DN-D0520	5.2		6	66	28	20	36
HY-3DN-D0550	5.5		6	66	28	20	36
HY-3DN-D0555	5.55		6	66	28	20	36
HY-3DN-D0580	5.8		6	66	28	20	36
HY-3DN-D0600	6		6	66	28	20	36
HY-3DN-D0610	6.1		8	79	34	24	36
HY-3DN-D0620	6.2		8	79	34	24	36
HY-3DN-D0630	6.3		8	79	34	24	36
HY-3DN-D0650	6.5		8	79	34	24	36
HY-3DN-D0660	6.6		8	79	34	24	36
HY-3DN-D0680	6.8	M8	8	79	34	24	36
HY-3DN-D0690	6.9		8	79	34	24	36
HY-3DN-D0700	7	M8X1	8	79	34	24	36
HY-3DN-D0710	7.1		8	79	41	29	36
HY-3DN-D0740	7.4		8	79	41	29	36
HY-3DN-D0750	7.5		8	79	41	29	36
HY-3DN-D0780	7.80		8	79	41	29	36
HY-3DN-D0800	8.00		8	79	41	29	36
HY-3DN-D0810	8.10		10	89	47	35	40
HY-3DN-D0840	8.40		10	89	47	35	40
HY-3DN-D0850	8.50	M10	10	89	47	35	40
HY-3DN-D0860	8.60		10	89	47	35	40
HY-3DN-D0870	8.70		10	89	47	35	40
HY-3DN-D0880	8.80		10	89	47	35	40
HY-3DN-D0900	9.00	M10X1	10	89	47	35	40
HY-3DN-D0930	9.30		10	89	47	35	40
HY-3DN-D0950	9.50		10	89	47	35	40
HY-3DN-D0960	9.60		10	89	47	35	40
HY-3DN-D0980	9.80		10	89	47	35	40
HY-3DN-D1000	10.00		10.00	89	47	35	40
HY-3DN-D1025	10.25	M12	12.00	102	55	40	45
HY-3DN-D1040	10.40		12.00	102	55	40	45
HY-3DN-D1050	10.50	M12X15	12.00	102	55	40	45
HY-3DN-D1060	10.60		12.00	102	55	40	45
HY-3DN-D1080	10.80		12.00	102	55	40	45
HY-3DN-D1100	11.00		12.00	102	55	40	45
HY-3DN-D1120	11.20		12.00	102	55	40	45
HY-3DN-D1150	11.50		12.00	102	55	40	45
HY-3DN-D1180	11.80		12.00	102	55	40	45
HY-3DN-D1200	12.00	M14	12.00	102	55	40	45
HY-3DN-D1225	12.25		14.00	107	60	43	45
HY-3DN-D1250	12.50	M14X1.5	14.00	107	60	43	45
HY-3DN-D1270	12.70		14.00	107	60	43	45
HY-3DN-D1275	12.75		14.00	107	60	43	45
HY-3DN-D1280	12.80		14.00	107	60	43	45
HY-3DN-D1300	13.00		14.00	107	60	43	45
HY-3DN-D1310	13.10		14.00	107	60	43	45
HY-3DN-D1350	13.50		14.00	107	60	43	45
HY-3DN-D1380	13.80		14.00	107	60	43	45
HY-3DN-D1400	14.00	M16	14.00	107	60	43	45
HY-3DN-D1425	14.25		16.00	115	65	45	48
HY-3DN-D1450	14.50	M16X1.5	16.00	115	65	45	48
HY-3DN-D1475	14.75		16.00	115	65	45	48
HY-3DN-D1480	14.80		16.00	115	65	45	48
HY-3DN-D1500	15.00		16.00	115	65	45	48
HY-3DN-D1510	15.10		16.00	115	65	45	48
HY-3DN-D1550	15.50		16.00	115	65	45	48
HY-3DN-D1580	15.80		16.00	115	65	45	48
HY-3DN-D1600	16.00		16.00	115	65	45	48
HY-3DN-D1650	16.50		18.00	123	73	51	48
HY-3DN-D1675	16.75		18.00	123	73	51	48
HY-3DN-D1680	16.80		18.00	123	73	51	48
HY-3DN-D1700	17.00		18.00	123	73	51	48
HY-3DN-D1750	17.50		18.00	123	73	51	48
HY-3DN-D1780	17.80		18.00	123	73	51	48
HY-3DN-D1800	18.00		18.00	123	73	51	48
HY-3DN-D1850	18.50		20.00	131	79	55	50
HY-3DN-D1880	18.80		20.00	131	79	55	50
HY-3DN-D1900	19.00		20.00	131	79	55	50
HY-3DN-D1950	19.50		20.00	131	79	55	50
HY-3DN-D1980	19.80		20.00	131	79	55	50
HY-3DN-D2000	20.00		20.00	131	79	55	50
