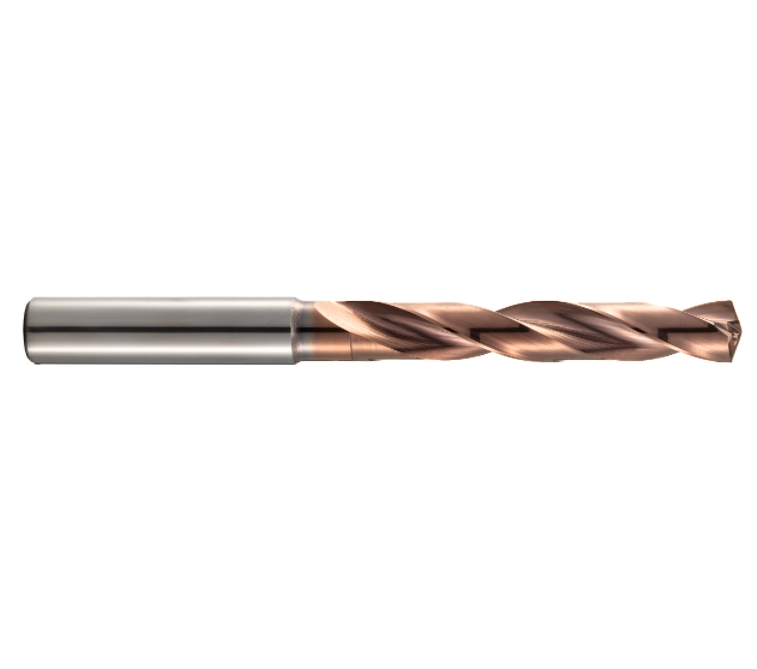

5D Internal Cooling Twist drills

Category: Solid Carbide Drills
Suitable for: PSteel

Inquire about this product li.bao@hayutooling.com

Product description

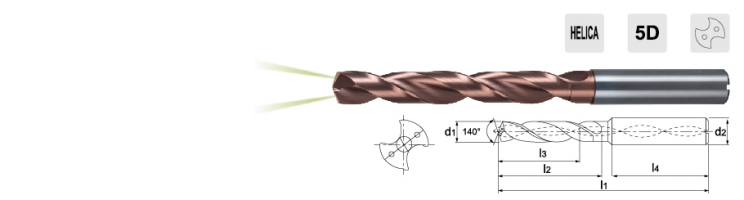

1d5da25e-1d2b-4e70-997b-82750f394330 - 副本

产品编号 ltem Code	刃径(d1m7) Diameter	螺纹尺寸 M 公制 Thread size M metric system	柄径(d h6) Shank Diameter	全长(L1) Total length	槽长(L2) Slct length	最大切深(L3) Max cutting deepth	柄长(L4) Stalk length
HY-5DN-D0300	3.00		6.00	66	28	23	36
HY-5DN-D0325	3.25		6.00	66	28	23	36
HY-5DN-D0330	3.30	M4	6.00	66	28	23	36
HY-5DN-D0340	3.40		6.00	66	28	23	36
HY-5DN-D0350	3.50		6.00	66	28	23	36
HY-5DN-D0370	3.70		6.00	66	28	23	36
HY-5DN-D0400	4.00		6.00	74	36	29	36
HY-5DN-D0420	4.20	M5	6.00	74	36	29	36
HY-5DN-D0430	4.30		6.00	74	36	29	36
HY-5DN-D0450	4.50		6.00	74	36	29	36
HY-5DN-D0465	4.65		6.00	74	36	29	36
HY-5DN-D0480	4.80		6.00	82	44	35	36
HY-5DN-D0500	5.00	M6	6.00	82	44	35	36
HY-5DN-D0510	5.10		6.00	82	44	35	36
HY-5DN-D0520	5.20		6.00	82	44	35	36
HY-5DN-D0550	5.50		6.00	82	44	35	36
HY-5DN-D0555	5.55		6.00	82	44	35	36
HY-5DN-D0580	5.80		6.00	82	44	35	36
HY-5DN-D0600	6.00		6.00	82	44	35	36
HY-5DN-D0610	6.10		8.00	91	53	43	36
HY-5DN-D0620	6.20		8.00	91	53	43	36
HY-5DN-D0630	6.30		8.00	91	53	43	36
HY-5DN-D0650	6.50		8.00	91	53	43	36
HY-5DN-D0660	6.60		8.00	91	53	43	36
HY-5DN-D0680	6.80	M8	8.00	91	53	43	36
HY-5DN-D0690	6.90		8.00	91	53	43	36
HY-5DN-D0700	7.00	M8X1	8.00	91	53	43	36
HY-5DN-D0710	7.10		8.00	91	53	43	36
HY-5DN-D0740	7.40		8.00	91	53	43	36
HY-5DN-D0750	7.50		8.00	91	53	43	36
HY-5DN-D0780	7.80		8.00	91	53	43	36
HY-5DN-D0800	8.00		8.00	91	53	43	36
HY-5DN-D0810	8.10		10.00	103	61	49	40
HY-5DN-D0840	8.40		10.00	103	61	49	40
HY-5DN-D0850	8.50	M10	10.00	103	61	49	40
HY-5DN-D0860	8.60		10.00	103	61	49	40
HY-5DN-D0870	8.70		10.00	103	61	49	40
HY-5DN-D0880	8.80		10.00	103	61	49	40
HY-5DN-D0900	9.00	M10X1	10.00	103	61	49	40
HY-5DN-D0930	9.30		10.00	103	61	49	40
HY-5DN-D0950	9.50		10.00	103	61	49	40
HY-5DN-D0960	9.60		10.00	103	61	49	40
HY-5DN-D0980	9.80		10.00	103	61	49	40
HY-5DN-D1000	10.00		10.00	103	61	49	40
HY-5DN-D1025	10.25	M12	12.00	118	71	56	45
HY-5DN-D1040	10.40		12.00	118	71	56	45
HY-5DN-D1050	10.50	M12X1.5	12.00	118	71	56	45
HY-5DN-D1060	10.60		12.00	118	71	56	45
HY-5DN-D1080	10.80		12.00	118	71	56	45
HY-5DN-D1100	11.00		12.00	118	71	56	45
HY-5DN-D1120	11.20		12.00	118	71	56	45
HY-5DN-D1150	11.50		12.00	118	71	56	45
HY-5DN-D1180	11.80		12.00	118	71	56	45
HY-5DN-D1200	12.00	M14	12.00	118	71	56	45
HY-5DN-D1220	12.20		14.00	124	77	60	45
HY-5DN-D1225	12.25		14.00	124	77	60	45
HY-5DN-D1250	12.50	M14X1.5	14.00	124	77	60	45
HY-5DN-D1270	12.70		14.00	124	77	60	45
HY-5DN-D1275	12.75		14.00	124	77	60	45
HY-5DN-D1280	12.80		14.00	124	77	60	45
HY-5DN-D1310	13.00		14.00	124	77	60	45
HY-5DN-D1350	13.50		14.00	124	77	60	45
HY-5DN-D1380	13.80		14.00	124	77	60	45
HY-5DN-D1400	14.00	M16	14.00	124	77	60	45
HY-5DN-D1425	14.25		16.00	133	83	63	48
HY-5DN-D1450	14.50	M16X1.5	16.00	133	83	63	48
HY-5DN-D1475	14.75		16.00	133	83	63	48
HY-5DN-D1480	14.80		16.00	133	83	63	48
HY-5DN-D1500	15.00		16.00	133	83	63	48
HY-5DN-D1510	15.10		16.00	133	83	63	48
HY-5DN-D1550	15.50		16.00	133	83	63	48
HY-5DN-D1580	15.80		16.00	133	83	63	48
HY-5DN-D1600	16.00		16.00	133	83	63	48
HY-5DN-D1650	16.50		18.00	143	93	71	48
HY-5DN-D1675	16.75		18.00	143	93	71	48
HY-5DN-D1680	16.80		18.00	143	93	71	48
HY-5DN-D1700	17.00		18.00	143	93	71	48
HY-5DN-D1750	17.50		18.00	143	93	71	48
HY-5DN-D1780	17.80		18.00	143	93	71	48
HY-5DN-D1800	18.00		18.00	143	93	71	48
HY-5DN-D1850	18.50		20.00	153	101	77	50
HY-5DN-D1900	19.00		20.00	153	101	77	50
HY-5DN-D1950	19.50		20.00	153	101	77	50
HY-5DN-D1980	19.80		20.00	153	101	77	50
HY-5DN-D2000	20.00		20.00	153	101	77	50
