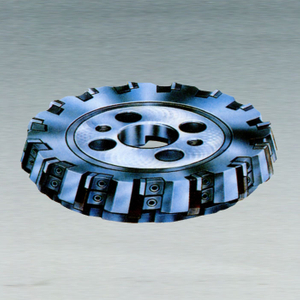

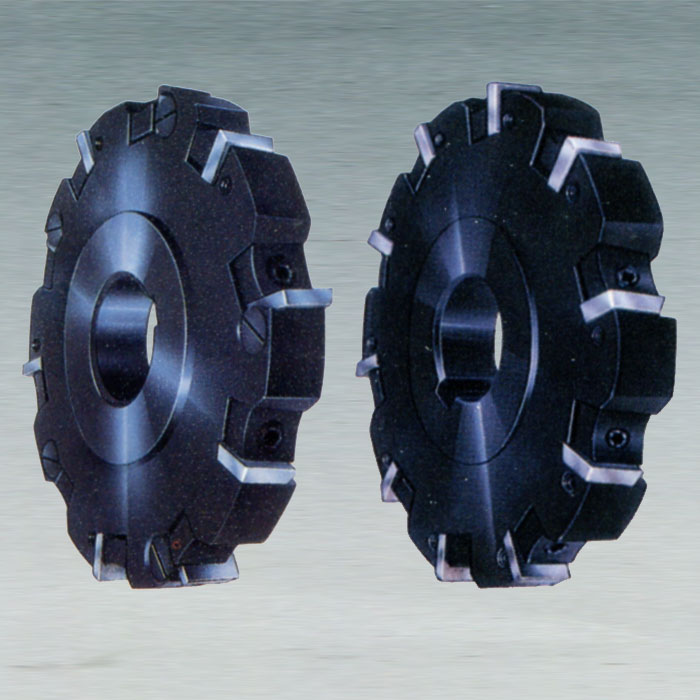

Our company can accept various customized non-standard tools
Structural diagram and parameters
DXL | d | d1 | d | large | ž |
Φ100×16~22 | 100 | 55 | 32 | 16 18 20 22 | 8 |
Φ100×24~30 | 24 26 28 30 | 6 | |||
Φ125×16~22 | 125 | 55 | 32 | 16 18 20 22 | 10 |
Φ125×24~30 | 24 26 28 30 | 8 | |||
Φ140×16~22 | 140 | 65 | 40 | 16 18 20 22 | 12 |
Φ140×24~30 | 24 26 28 30 | 10 | |||
Φ150×16~22 | 150 | 65 | 40 | 16 18 20 22 | 12 |
Φ150×24~30 | 24 26 28 30 | 10 | |||
Φ160×16~22 | 160 | 65 | 40 | 16 18 20 22 | 12 |
Φ160×24~30 | 24 26 28 30 | 10 | |||
Φ175×16~22 | 175 | 65 | 40 | 16 18 20 22 | 12 |
Φ175×24~30 | 24 26 28 30 | 10 | |||
Φ200×16~22 | 200 | 65 | 40 | 16 18 20 22 | 16 |
Φ200×24~30 | 200 | 65 | 40 | 24 26 28 30 | 14 |
Φ250×16~22 | 250 | 75 | 50 | 16 18 20 22 | 20 |
Φ250×24~30 | 24 26 28 30 | 16 | |||
Φ280×16~22 | 280 | 75 | 50 | 16 18 20 22 | 20 |
Φ280×24~30 | 24 26 28 30 | 16 | |||
Φ315×16~22 | 315 | 75 | 50 | 16 18 20 22 | 24 |
Φ315×24~30 | 24 26 28 30 | 20 | |||
Φ350×16~22 | 350 | 75 | 50 | 16 18 20 22 | 28 |
Φ350×24~30 | 24 26 28 30 | 24 | |||
Φ400×16~22 | 400 | 75 | 50 | 16 18 20 22 | 32 |
Φ400×24~30 | 24 26 28 30 | 28 | |||
Φ500×16~22 | 500 | 75 | 50 | 16 18 20 22 | 40 |
Φ500×24~30 | 24 26 28 30 | 30 |
Optional accessories
Accessories Name Part Name | Right blade insert (R) | Left blade insert (L) | Left wedge wedge (L) | Right wedge wedge (R) | Double-headed screws wedge screws | Positioning screws | Supporting screws tightening screws |
Specifications/Order Number Tool Order Number/Shape Shape |
|
|
|
|
|
| |
ΦD×16 | DP21 | DP22 | SML01 | SML02 | SML13 | SML14 | SML16 |
ΦD×18 | SML03 | SML04 | |||||
ΦD×20 | DP23 | DP24 | SML05 | SML06 | SML15 | SML17 | |
ΦD×22 | SML07 | SML08 | |||||
ΦD×24 | SML09 | SML010 | |||||
ΦD×30 | DP25 | DP26 | SML011 | SML012 | |||
