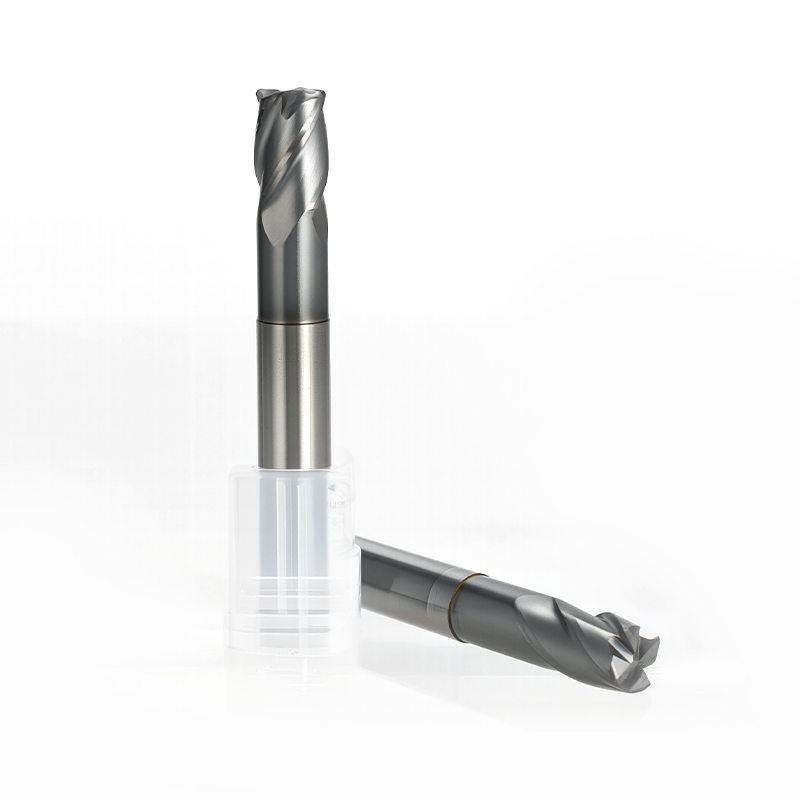

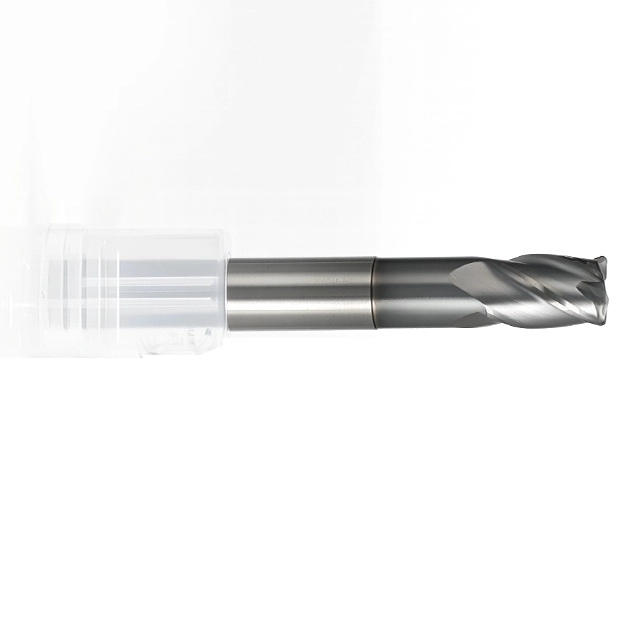

MSS-Radius End Mills-4F

Using 0.3um ultra-fine and ultra-fine matrix,with good toughness and hardness, achieving high-speed wear-resistant processing.
Very suitable for universal cutting of materials processed between HRC40-65,widely used in high-precision mold processing such as automotive molds,mobile phone molds,hardware molds.

Availability:

Quantity:



Inquire Add to Basket

Model:
MSS Radius End Mills
Brand:
Hayu

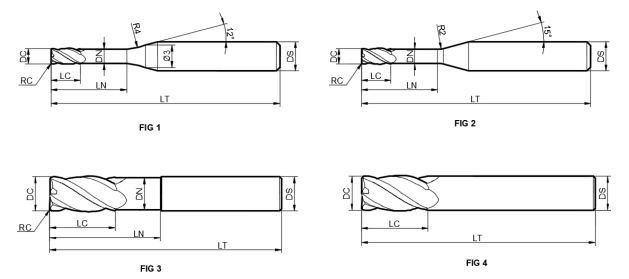

Order model	Size							Graphic
Order model	DC Diameter	RB Ball Radius	DN Avoidance diameter	LC Blade Length	LN Effective blade length	LT Total length	DS Shenk Diameter	Graphic
MSS-0100204-YB1	1.0	0.2	1.0	1.5	4.0	50	4	1
MSS-0100206-YB1	1.0	0.2	1.0	1.5	6.0	50	4	1
MSS-0100208-YB1	1.0	0.2	1.0	1.5	8.0	50	4	1
MSS-0100210-YB1	1.0	0.2	1.0	1.5	10.0	50	4	1
MSS-0150204-YB1	1.5	0.2	1.5	2.0	4.0	50	4	1
MSS-0150206-YB1	1.5	0.2	1.5	2.0	6.0	50	4	1
MSS-0150208-YB1	1.5	0.2	1.5	2.0	8.0	50	4	1
MSS-0150210-YB1	1.5	0.2	1.5	2.0	10.0	50	4	1
MSS-0150212-YB1	1.5	0.2	1.5	2.0	12.0	50	4	1
MSS-0200106-YB1	2.0	0.1	2.0	3.0	6.0	50	4	1
MSS-0200204-YB1	2.0	0.2	2.0	3.0	4.0	50	4	1
MSS-0200206-YB1	2.0	0.2	2.0	3.0	6.0	50	4	1
MSS-0200208-YB1	2.0	0.2	2.0	3.0	8.0	50	4	1
MSS-0200210-YB1	2.0	0.2	2.0	3.0	10.0	50	4	1
MSS-0200212-YB1	2.0	0.2	2.0	3.0	12.0	50	4	1
MSS-0200216-YB1	2.0	0.2	2.0	3.0	16.0	50	4	1
MSS-0200204-YB1	2.0	0.5	2.0	3.0	4.0	50	4	1
MSS-0200506-YB1	2.0	0.5	2.0	3.0	6.0	50	4	1
MSS-0200508-YB1	2.0	0.5	2.0	3.0	8.0	50	4	1
MSS-0200510-YB1	2.0	0.5	2.0	3.0	10.0	50	4	1
MSS-0200512-YB1	2.0	0.5	2.0	3.0	12.0	50	4	1
MSS-0200516-YB1	2.0	0.5	2.0	3.0	16.0	50	4	1
MSS-0300208-YB2	3.0	0.2	3.0	4.0	8.0	50	4	2
MSS-0300210-YB2	3.0	0.2	3.0	4.0	10.0	50	4	2
MSS-0300212-YB2	3.0	0.2	3.0	4.0	12.0	50	4	2
MSS-0300216-YB2	3.0	0.2	3.0	4.0	16.0	60	6	2
MSS-0300220-YB2	3.0	0.2	3.0	4.0	20.0	60	6	2
MSS-0300508-YB2	3.0	0.5	3.0	4.0	8.0	50	4	2
MSS-0300510-YB2	3.0	0.5	3.0	4.0	10.0	50	4	2
MSS-0300512-YB2	3.0	0.5	3.0	4.0	12.0	50	4	2
MSS-0300516-YB2	3.0	0.5	3.0	4.0	16.0	60	6	2
MSS-0300520-YB2	3.0	0.5	3.0	4.0	20.0	60	6	2
MSS-0400150-YB4	4.0	0.1	-	11.0	-	50	4	4
MSS-0400250-YB4	4.0	0.2	-	11.0	-	50	4	4
MSS-0400210-YB3	4.0	0.2	3.9	6.0	10.0	50	4	3
MSS-0400216-YB2	4.0	0.2	3.9	6.0	16.0	60	6	2
MSS-0400220-YB2	4.0	0.2	3.9	6.0	20.0	60	6	2
MSS-0400550-YB4	4.0	0.5	-	11.0	-	50	4	4
MSS-0400510-YB3	4.0	0.5	3.9	6.0	10.0	50	4	3
MSS-0400516-YB2	4.0	0.5	3.9	6.0	16.0	60	6	2
MSS-0400520-YB2	4.0	0.5	3.9	6.0	20.0	60	6	2
MSS-0600250-YB4	6.0	0.2	-	15.0	-	50	6	4
MSS-0600260-YB4	6.0	0.2	-	15.0	-	60	6	4
MSS-0600275-YB4	6.0	0.2	-	15.0	-	75	6	4
MSS-0600250-YB3	6.0	0.2	5.9	9.0	18.0	50	6	3
MSS-0600260-YB3	6.0	0.2	5.9	9.0	18.0	60	6	3
MSS-0600275-YB3	6.0	0.2	5.9	9.0	18.0	75	6	3
MSS-0600550-YB4	6.0	0.5	-	15.0	-	50	6	4
MSS-0600560-YB4	6.0	0.5	-	15.0	-	60	6	4
MSS-0600575-YB4	6.0	0.5	-	15.0	-	75	6	4
MSS-0600550-YB3	6.0	0.5	5.9	9.0	18.0	50	6	3
MSS-0600560-YB3	6.0	0.5	5.9	9.0	18.0	60	6	3
MSS-0600575-YB3	6.0	0.5	5.9	9.0	18.0	75	6	3
MSS-0601050-YB4	6.0	1.0	-	15.0	-	50	6	4
MSS-0601060-YB4	6.0	1.0	-	15.0	-	60	6	4
MSS-0601075-YB4	6.0	1.0	-	15.0	-	75	6	4
MSS-0601050-YB3	6.0	1.0	5.9	9.0	18.0	50	6	3
MSS-0601060-YB3	6.0	1.0	5.9	9.0	18.0	60	6	3
MSS-0601075-YB3	6.0	1.0	5.9	9.0	18.0	75	6	3
MSS-0800560-YB4	8.0	0.5	-	20.0	-	60	8	4
MSS-0800575-YB4	8.0	0.5	-	20.0	-	75	8	4
MSS-0800510-YB4	8.0	0.5	-	20.0	-	100	8	4
MSS-0800560-YB3	8.0	0.5	7.6	12.0	25.0	60	8	3
MSS-0800575-YB3	8.0	0.5	7.6	12.0	25.0	75	8	3
MSS-0800510-YB3	8.0	0.5	7.6	12.0	25.0	100	8	3
MSS-0801060-YB4	8.0	1.0	-	20.0	-	60	8	4
MSS-0801075-YB4	8.0	1.0	-	20.0	-	75	8	4
MSS-0801010-YB4	8.0	1.0	-	20.0	-	100	8	4
MSS-0801060-YB3	8.0	1.0	7.6	12.0	25.0	60	8	3
MSS-0801075-YB3	8.0	1.0	7.6	12.0	25.0	75	8	3
MSS-0801010-YB3	8.0	1.0	7.6	12.0	25.0	100	8	3
MSS-1000575-YB4	10.0	0.5	-	25.0	-	75	10	4
MSS-1000510-YB4	10.0	0.5	-	25.0	-	100	10	4
MSS-1000575-YB3	10.0	0.5	9.6	15.0	30.0	75	10	3
MSS-1000510-YB3	10.0	0.5	9.6	15.0	35.0	100	10	3
MSS-1001075-YB4	10.0	1.0	-	25.0	-	75	10	4
MSS-1001010-YB4	10.0	1.0	-	25.0	-	100	10	4
MSS-1001075-YB3	10.0	1.0	9.6	15.0	30.0	75	10	3
MSS-1001010-YB3	10.0	1.0	9.6	15.0	35.0	100	10	3
MSS-1200510-YB4	12.0	0.5	-	35.0	-	75	12	4
MSS-1200510-YB4	12.0	0.5	-	35.0	-	100	12	4
MSS-1200515-YB4	12.0	0.5	-	35.0	-	150	12	4
MSS-1200510-YB3	12.0	0.5	11.6	18.0	35.0	100	12	3
MSS-1200515-YB3	12.0	0.5	11.6	18.0	35.0	150	12	3
MSS-1201010-YB4	12.0	1.0	-	35.0	-	100	12	4
MSS-1201015-YB4	12.0	1.0	-	35.0	-	150	12	4
MSS-1201010-YB3	12.0	1.0	11.6	18.0	35.0	100	12	3
MSS-1201015-YB3	12.0	1.0	11.6	18.0	35.0	150	12	3
MSS-1202010-YB4	12.0	2.0	-	35.0	-	100	12	4
MSS-1202015-YB4	12.0	2.0	-	35.0	-	150	12	4
MSS-1202010-YB3	12.0	2.0	11.6	18.0	35.0	100	12	3
MSS-1202015-YB3	12.0	2.0	11.6	18.0	35.0	150	12	3
