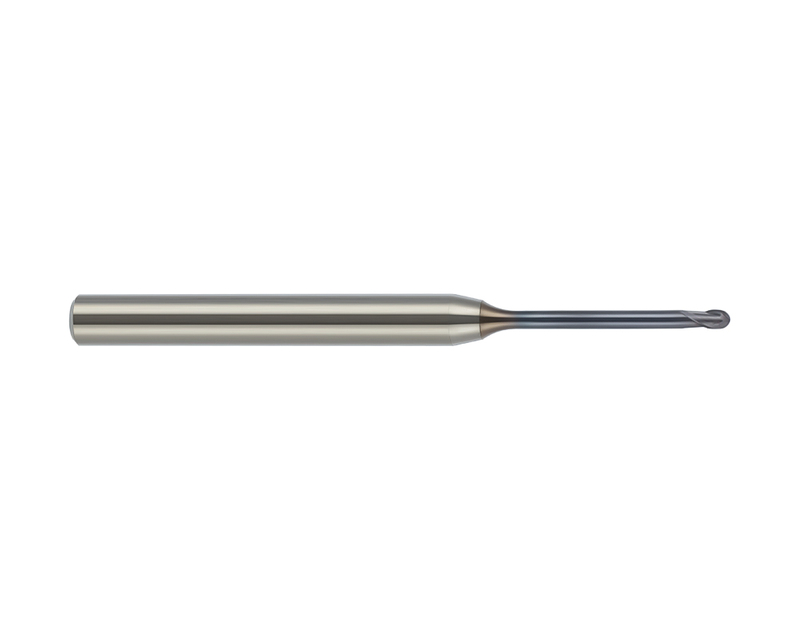

Micro Diameter Deep Groove Ball End Mills -2F

Share to:

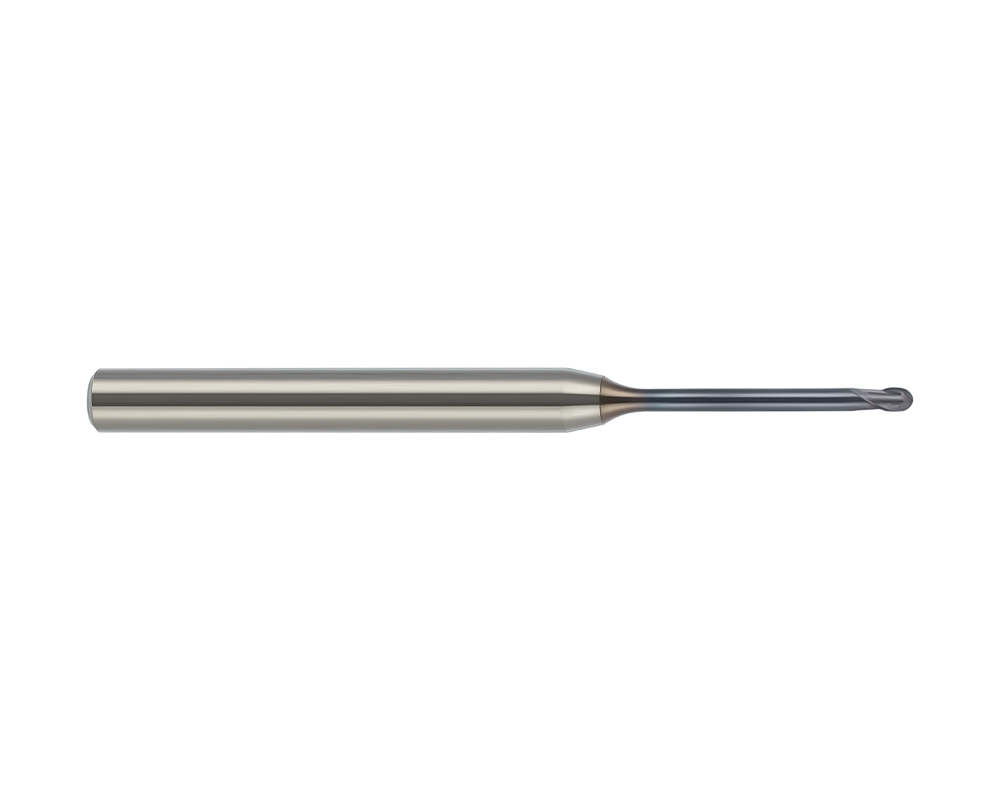

Long Neck Micro 2-Flute Ball End Mills

Availability:

Quantity:



Inquire Add to Basket

Item Code	(R) Ball radius	(L2) Neck Length	(L1) Blade Length	(D) Diameter	(d2) Neck diameter	Angulus Colli	(dh6) Shank Diameter	(L) Total length
HY-2EP-R00050030450	R0.05	0.3	0.1	0.1	0.085	15°	4	50
HY-2EP-R00050050450	R0.05	0.5	0.1	0.1	0.085	15°	4	50
HY-2EP-R00050080450	R0.05	0.8	0.1	0.1	0.085	15°	4	50
HY-2EP-R00050100450	R0.05	1	0.1	0.1	0.085	15°	4	50
HY-2EP-R000750050450	R0.075	0.5	0.15	0.15	0.13	15°	4	50
HY-2EP-R000750100450	R0.075	1	0.15	0.15	0.13	15°	4	50
HY-2EP-RD010100450	R0.1	1	0.2	0.2	0.18	15°	4	50
HY-2EP-R0010150450	R0.1	1.5	0.2	02	0.18	12°	4	50
HY-2EP-R0010200450	R0.1	2	0.2	0.2	0.18	12°	4	50
HY-2EP-R0010300450	R0.1	3	0.2	0.2	0.18	12°	4	50
HY-2EP-R00150100450	R0.15	1	0.3	0.3	0.27	15°	4	50
HY-2EP-R00150150450	R0.15	1.5	0.3	0.3	0.27	15°	4	50
HY-2EP-R00150200450	R0.15	2	0.3	0.3	0.27	12°	4	50
HY-2EP-R00150300450	R0.15	3	0.3	0.3	0.27	12°	4	50
HY-2EP-R00150400450	R0.15	4	0.3	0.3	0.27	12°	4	50
HY-2EP-R00150500450	R0.15	5	0.3	0.3	0.27	12°	4	50
HY-2EP-R0020150450	R0.2	1.5	0.4	0.4	0.37	12°	4	50
HY-2EP-R0020200450	R0.2	2	0.4	0.4	0.37	12°	4	50
HY-2EP-R0020300450	R0.2	3	0.4	0.4	0.37	12°	4	50
HY-2EP-R0020400450	R0.2	4	0.4	0.4	0.37	12°	4	50
HY-2EP-R0020500450	R0.2	5	0.4	0.4	0.37	12°	4	50
HY-2EP-R0020600450	R0.2	6	0.4	0.4	0.37	12°	4	50
HY-2EP-R00250200450	R0.25	2	0.5	0.5	0.46	12°	4	50
HY-2EP-R00250300450	R0.25	3	0.5	0.5	0.46	12°	4	50
HY-2EP-R00250400450	R0.25	4	0.5	0.5	0.46	12°	4	50
HY-2EP-R00250500450	R0.25	5	0.5	0.5	0.46	12°	4	50
HY-2EP-R00250600450	R0.25	6	0.5	0.5	0.46	12°	4	50
HY-2EP-R00250800450	R0.25	8	0.5	0.5	0.46	12°	4	50
HY-2EP-R0030200450	R0.3	2	0.6	0.6	0.56	12°	4	50
HY-2EP-R0030300450	R0.3	3	0.6	0.6	0.56	12°	4	50
HY-2EP-R0030400450	R0.3	4	0.6	0.6	0.56	12°	4	50
HY-2EP-R0030500450	R0.3	5	0.6	0.6	0.56	12°	4	50
HY-2EP-R0030600450	R0.3	6	0.6	0.6	0.56	12°	4	50
HY-2EP-R0030800450	R0.3	8	0.6	0.6	0.56	12°	4	50
HY-2EP-R0031000450	R0.3	10	0.6	0.6	0.56	12°	4	50
HY-2EP-R0040200450	R0.4	2	0.8	0.8	0.76	12°	4	50
HY-2EP-R0040300450	R0.4	3	0.8	0.8	0.76	12°	4	50
HY-2EP-R0040400450	R0.4	4	0.8	0.8	0.76	12°	4	50
HY-2EP-R0040500450	R0.4	5	0.8	0.8	0.76	12°	4	50
HY-2EP-R0040600450	R0.4	6	0.8	0.8	0.76	12°	4	50
HY-2EP-RD040800450	R0.4	8	0.8	0.8	0.76	12°	4	50
HY-2EP-R0041000450	R0.4	10	0.8	0.8	0.76	12°	4	50
