Home » Products » Milling tool Series » Universal Machining Milling Cutters » Long Neck Micro 2-Flute End Mills

Product Category

Micro Diameter Deep Groove End Mills -2F

Share to:

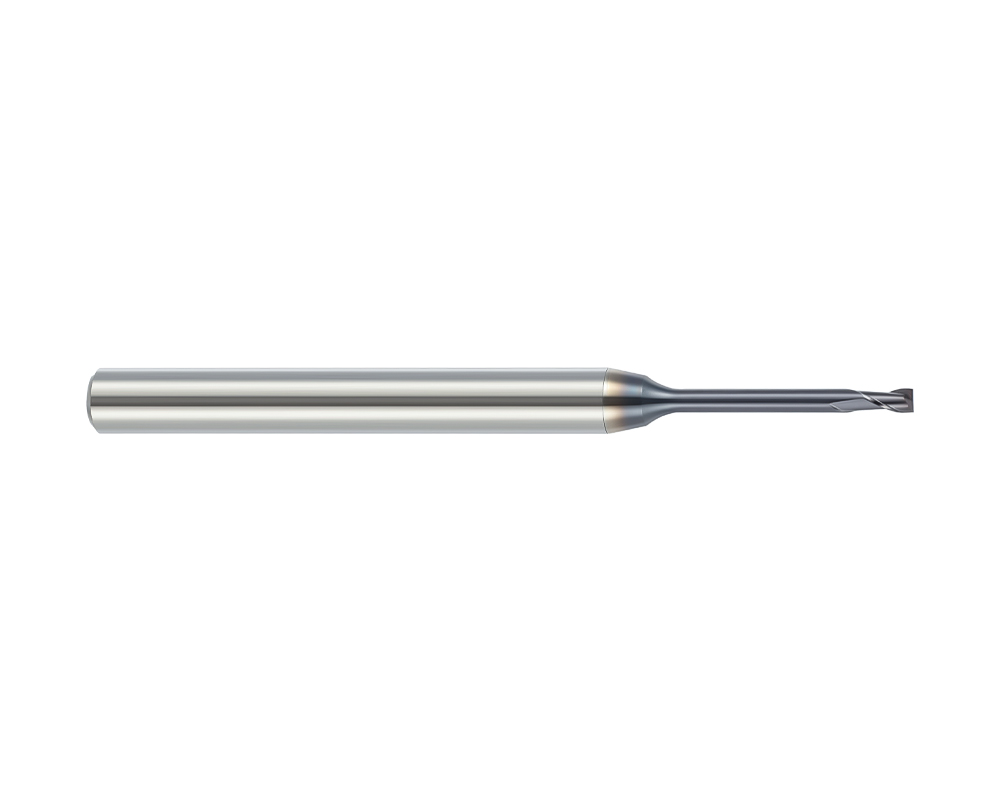

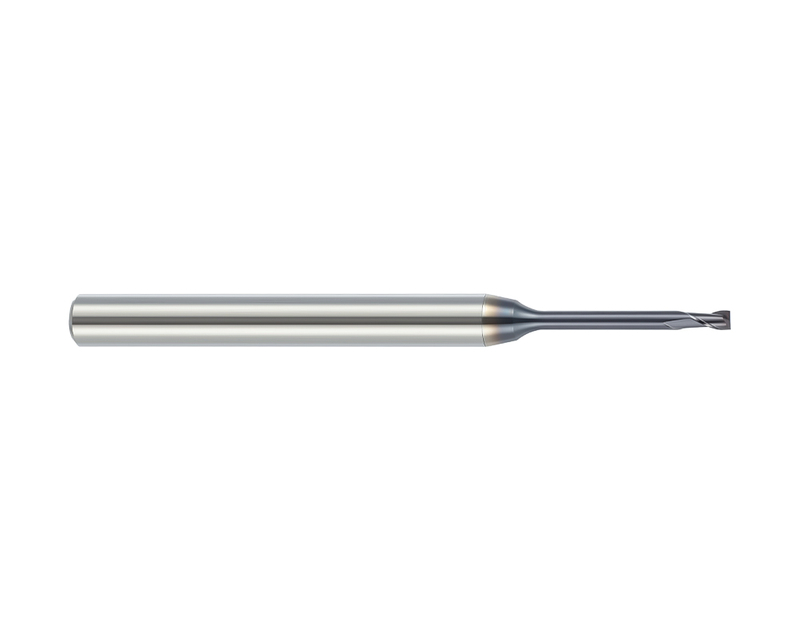

Long Neck Micro 2-Flute End Mills

Availability:

Quantity:



Inquire Add to Basket

Item Code	(D) Dameter	(L2) Effective blade length	(L1) Blade Length	(d2) Neck diameler	Angulus Colli	(d h6) Shank Diameter	(L) Total length
HY-2EP-0010030450	0.1	0.3	0.1	0.085	15°	4	50
HY-2EP-0010050450	0.1	0.5	0.1	0.085	15°	4	50
HY-2EP-0010080450	0.1	0.8	0.1	0.085	15°	4	50
HY-2EP-0010100450	0.1	1	0.1	0.085	15°	4	50
HY-2EP-00150050450	0.15	0.5	0.15	0.13	15°	4	50
HY-2EP-00150100450	0.15	1	0.15	0.13	15°	4	50
HY-2EP-0020100450	02	1	0.2	0.18	15°	4	50
HY-2EP-0020150450	02	1.5	0.2	0.18	12°	4	50
HY-2EP-0020200450	02	2	0.2	0.18	12°	4	50
HY-2EP-0020300450	02	3	0.2	0.18	12°	4	50
HY-2EP-0020400450	02	4	0.2	0.18	12°	4	50
HY-2EP-0030100450	0.3	1	0.3	0.27	15°	4	50
HY-2EP-0030150450	0.3	1.5	0.3	0.27	12°	4	50
HY-2EP-0030200450	0.3	2	0.3	0.27	12°	4	50
HY-2EP-0030300450	0.3	3	0.3	0.27	12°	4	50
HY-2EP-0030400450	0.3	4	0.3	0.27	12°	4	50
HY-2EP-0030500450	0.3	5	0.3	0.27	12°	4	50
HY-2EP-0040150450	0.4	1.5	0.4	0.37	12°	4	50
HY-2EP-0040200450	0.4	2	0.4	0.37	12°	4	50
HY-2EP-0040300450	0.4	3	0.4	0.37	12°	4	50
HY-2EP-0040400450	0.4	4	0.4	0.37	12°	4	50
HY-2EP-0040500450	0.4	5	0.4	0.37	12°	4	50
HY-2EP-0040600450	0.4	6	0.4	0.37	12°	4	50
HY-2EP-0050200450	0.5	2	0.5	0.46	12°	4	50
HY-2EP-0050300450	0.5	3	0.5	0.46	12°	4	50
HY-2EP-0050400450	0.5	4	0.5	0.46	12°	4	50
HY-2EP-0050500450	0.5	5	0.5	0.46	12°	4	50
HY-2EP-0050600450	0.5	6	0.5	0.46	12°	4	50
HY-2EP-0050800450	0.5	8	0.5	0.46	12°	4	50
HY-2EP-0051000450	0.5	10	0.5	0.46	12°	4	50
HY-2EP-0060200450	0.6	2	0.6	0.56	12°	4	50
HY-2EP-0060300450	0.6	3	0.6	0.56	12°	4	50
HY-2EP-0060400450	0.6	4	0.6	0.56	12°	4	50
HY-2EP-0060500450	0.6	5	0.6	0.56	12°	4	50
HY-2EP-0060600450	0.6	6	0.6	0.56	12°	4	50
HY-2EP-0060800450	0.6	8	0.6	0.56	12°	4	50
HY-2EP-0061000450	0.6	10	0.6	0.56	12°	4	50
HY-2EP-0070200450	0.7	2	0.7	0.66	12°	4	50
HY-2EP-0070300450	0.7	3	0.7	0.66	12°	4	50
HY-2EP-0070400450	0.7	4	0.7	0.66	12°	4	50
HY-2EP-0070500450	0.7	5	0.7	0.66	12°	4	50
HY-2EP-0070600450	0.7	6	0.7	0.66	12°	4	50
HY-2EP-0070800450	0.7	8	0.7	0.66	12°	4	50
HY-2EP0071000451	0.7	10	0.7	0.66	12°	4	50
HY-2EP-0080200450	0.8	2	0.8	0.76	12°	4	50
HY-2EP-0080300450	0.8	3	0.8	0.76	12°	4	50
HY-2EP-0080400450	0.8	4	0.8	0.76	12°	4	50
HY-2EP-0080500450	0.8	5	0.8	0.76	12°	4	50
HY-2EP-0080600450	0.8	6	0.8	0.76	12°	4	50
HY-2EP-0080800450	0.8	8	0.8	0.76	12°	4	50
HY-2EP-0081000450	0.8	10	0.8	0.76	12°	4	50
